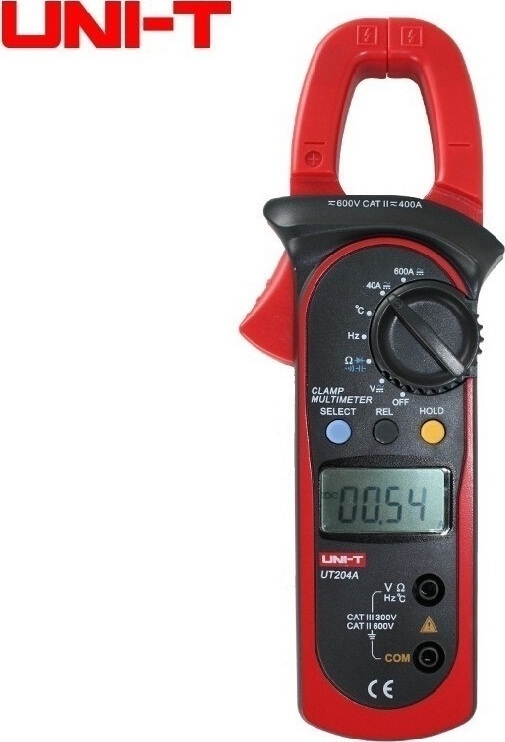

UT204A Digital Clamp Meter
€66.00
UT204A UNIT
| Specifications | Range | UT204A |
| AC current (A) | 600A | ±(2.5%+5) |
| DC current (A) | 600A | ±(2%+5) |
| AC voltage (V) | 600V | ±(1%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) |
| Resistance (Ω) | 40MΩ | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+3) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.5%+3) |
| Temperature | -40°C~1000°C | ±(2.5%+3) |
| Display count | 4000 | |
| Auto range | √ | |
| General Characterisitics | ||
| Power | 9V battery (6F22) | |
| Display | 35.6mm x 18mm | |
| Product color | Red and grey | |
| Product net weight | 260g | |
| Product size | 208mm x 76mm x 30mm | |
| Standard accessories | Batteries, test leads, carrying bag, point contact temperature probe | |
| Standard individual packing | Gift box, English manual | |
