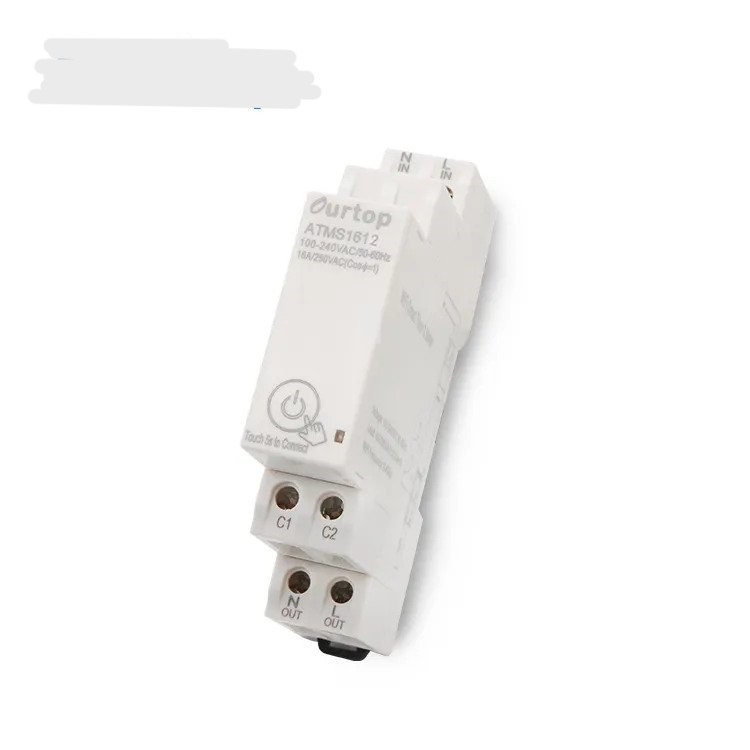

Wifi Time switch 1 din ATMS1612
€41.00
ATMS1612
Wifi Time switch and Energy meter 1 position
| Type | ATMS1612 |
| Voltage Rating | 100-240VAC 50/60Hz |
| Voltage Limit | 90-260VAC |
| ON/OFF Operation | 100 ON/OFF programs |
| Count Down time | from 1 min to 23hours59mins |
| Control | by mobile App |
| Switching Power | 16A 250VAC(Cosφ=1), 10A 250VAC(Cosφ=0.6) |
| Contact Configuration | 1 NO (SPST-NO) |
| Minimum Interval | 1 Minute |
| LED
|
RED and GREEN |
| Power Consumption | 5VA (Max) |
| Time Basis | internet time |
| Share | can share 50 person to control |
| Ambient Humidity | 35-85%RH |
| Programm | Countdown,Schedule,Circulate,Random , Astronomical |
| Energy Meter |
Function:
* DIN Rail 35mm(EN 60715)
* Small size
* Wifi Frequency:2.4GHz
* 100 on/off programs
* Ambient temperature range: -10℃ ~ +60℃
* Program timer, can set 100 On/Off programs one day or per week.
* Count down time,from 1 Min to 23 hours 59 Mins
* If the product is disconnected from the network, the timer retains all programs set up by Mobile APP and works according to the set programs.
* With the memory function, When the product contact is in the close state, after the power failure, and then call, the product contacts still keep the close state.
* Also can be controlled by buttons from terminals A1 and A2.
* Can be shared with 50 people by Mobile APP.
*In the App can display:Today Ele(KWh) , Current Ele(mA) , Current Power(W) , Current Voltage(V) , Total Ele(KWh)
